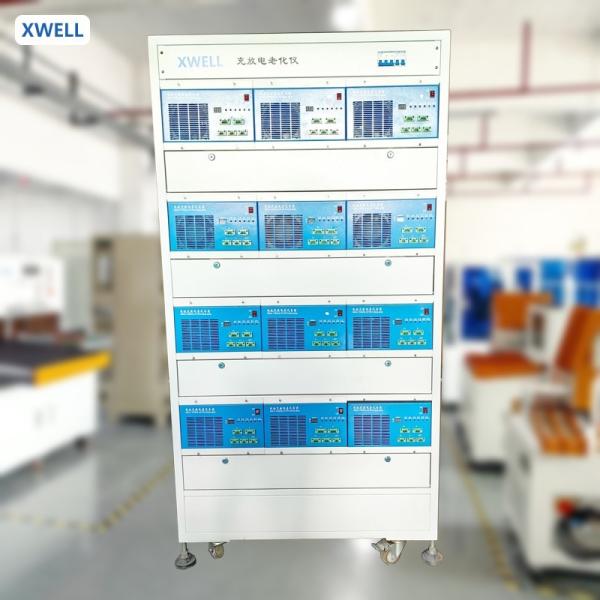

70V 5A Charging 10A Discharging Li-Ion Battery Aging Cabinet

Brand Name : XWELL

Model Number : BCDS70-05-10

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 2000/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Compliance : CE Certified

Type : Semi-Automatic

Power supply : AC220V 50Hz

Charging Accuracy : ±(0.2% of reading +0.2% of range)

Discharge Range : 50-10000mA

Discharge Accuracy : ±(0.2% of reading +0.2% of range)

Constant Voltage Cut-off Current : Minimum 50mA

Discharge Power : ≤700W

Inspection Time : Real-time Collection<2S

Contact Now

70V 5A Charging 10A Discharging Li-Ion Battery Aging Cabinet

BCDS70-05-10 is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.

Function introduction:

3.1 charging and discharging function: it has the functions of constant current and constant voltage charging and constant current discharge. It can charge and discharge the battery and record the battery capacity;

3.2 charging and discharging interface: fully meet the requirements of the same charging and discharging port and charging and discharging sub port of the battery pack, i.e. two wires (P + P -), three wires (P + P - C -), electric tool battery with positive plate charging protection and negative plate discharge protection (CH + P + P -);

Product Specification

Technical Parameter

Input Power Supply

 Measuring Range 7-70V
Accuracy ±(0.2% of reading +0.2% of range)

Current

 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S
Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge

 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge
Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times
Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
