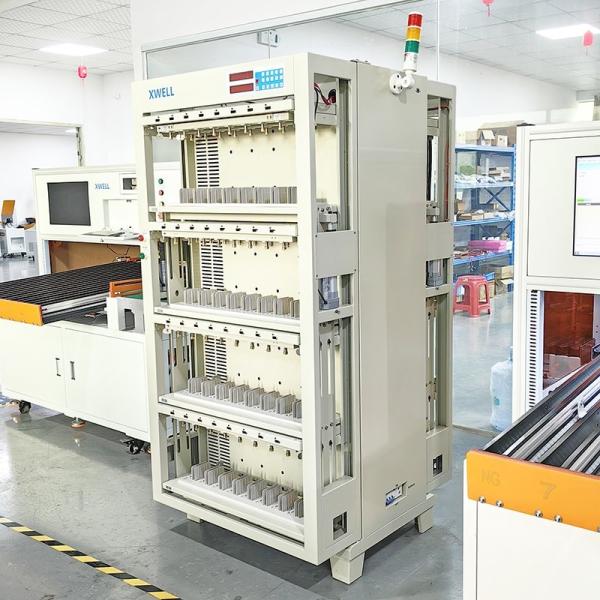

5V 100A Battery Cell Capacity Grading Machine For Prismatic Cell

Name: 5V 100A Battery Cell Capacity Grading Machine For Prismatic Cell
Brand: XWELL
Price: 7900 USD

Brand Name : XWELL

Model Number : Power battery cell tester

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 7900/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Battery type : Polymer battery, Prismatic battery

Voltage and current : 5V/10A; 5V/20A; 5V/30A

Heat dissipation : to enter the air naturally and exhaust the air upward

Overall energy saving : over 70%

Voltage measuring range : 0-5V, 1MV resolution

Battery voltage range : Charge 0-4.5V: Discharge 4.5-2V

voltage accuracy : ±(1‰ reading +1‰ full)

Control mode : Computer connection equipment work, FCL control

Contact Now

5V 100A Battery Cell Capacity Grading Machine For Prismatic Cell

Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.

Features:

1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.

2.Different clamps.

3.Current Range:10A 20A 30A for options

4.Channels:64 96 128 channels for options

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

5V 100A Battery Cell Capacity Grading Machine For Prismatic Cell

XWELL can provide different fixtures for different types of cells

5V 100A Battery Cell Capacity Grading Machine For Prismatic Cell
