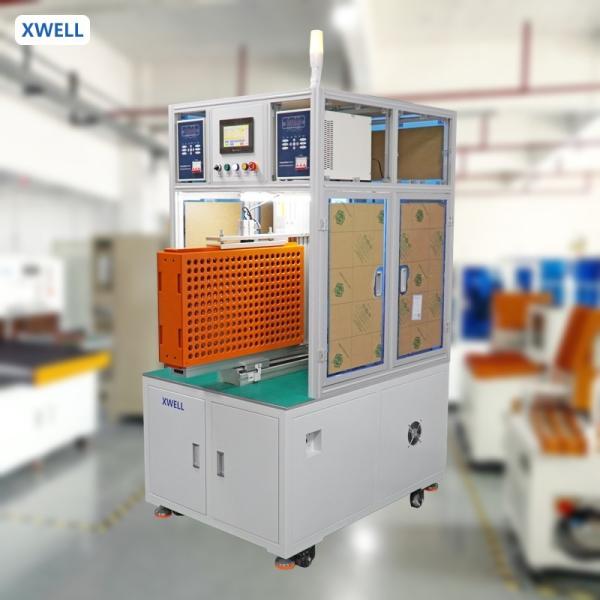

Double Sides Cylindrical Battery Pack Automatic Spot Welder

Name: Double Sides Cylindrical Battery Pack Automatic Spot Welder
Brand: XWELL
Price: 6000 USD

Brand Name : XWELL

Model Number : MD-ASW

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 6000 - 9000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100pcs per month

Delivery Time : 10-15 days

Packaging Details : Wooden box

Compliance : CE Certified

Product Origin : China

After-sales Service Provided : Video technical support

Pack size : X direction: 26; Y direction: 26

Welding current : 5000A 8000A

Power : 4000 W

Voltage : 220V/380V(AC)

Contact Now

Double Sides Cylindrical Battery Pack Automatic Spot Welder

Description
Automatic spot welder is used for welding 18650,21700,26650,32650,32700 cylinder battery pack.The power supply can be equipped with 5000A or 8000A AC, transistor or DC inverter.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. The operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.


Scope of application:

1. Can store dozens process of different battery packs product, switching products without re-setting parameters.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 100 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	single-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Single Side Spot Welding Machine Details
