Automatic 18650 Battery Pack Welding Machine Double Side Welding

Brand Name : XWELL

Model Number : MD-ASW

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 6000 - 9000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100pcs per month

Delivery Time : 10-15 days

Packaging Details : Wooden box

order(moq) : 1set

Payment : L/C,T/T,Western Union, Paypal

Cooling Wa : Water Cooling

After-sales Service Provided : Video technical support

Welding current : 5000A 8000A

Power : 4000 W

Voltage : 220V/380V(AC)

Contact Now

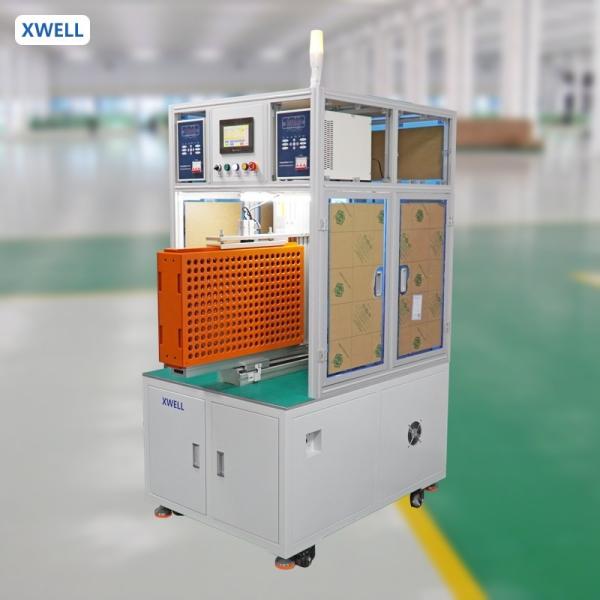

Automatic 18650 Battery Pack Welding Machine Double Side Welding

This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.


Battery Spot Welding Machine Specification

Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa


Single Side Spot Welding Machine Details
Automatic 18650 Battery Pack Welding Machine Double Side Welding
Automatic 18650 Battery Pack Welding Machine Double Side WeldingAutomatic 18650 Battery Pack Welding Machine Double Side Welding
