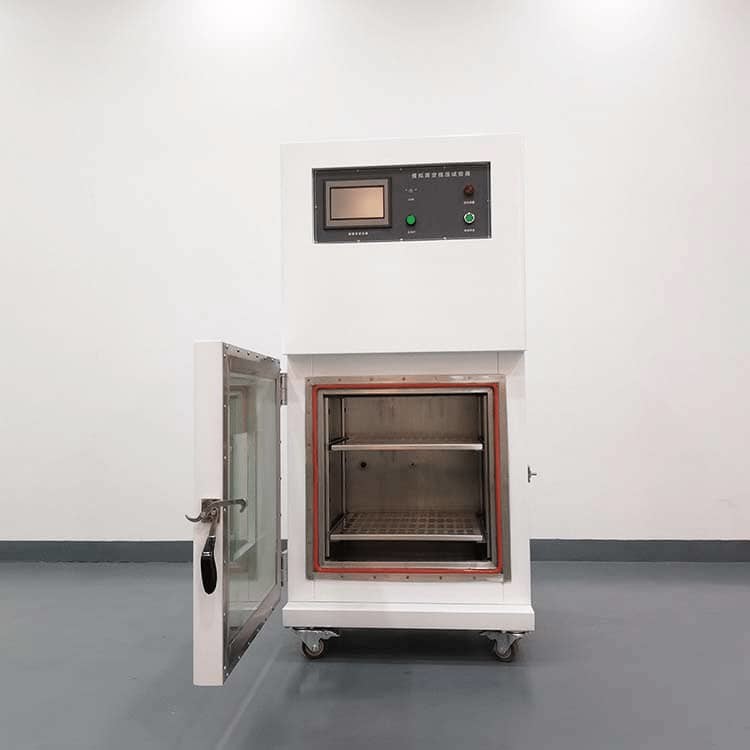

Battery Simulate High-Altitude And Low-Pressure Test Chambers
Introduction:
Battery low voltage (high altitude) simulation test,all tested samples we retested at 11.6kPa (1.68psi) negative pressure.High-altitude simulation test toevaluate the quality of the tested sample in a low pressure environment test purposeThe final test result requires that the battery must not explodeor catch fire;ln addition, the battery must not smoke or leak, and the battery protection valve cannot be destroyed. Test whether other electronic and electrical products can work normally under low voltage, or be destroyed and meet the standards
Technical parameters:
1. The inner material is: 304 stainless steel industrial plate thickness is 4.0mm, internal strengthening treatmer vacuum without deformation
2. The external material is: cold-rolled steel plate, thickness 1.2 mm,powder paint treatment
3. Hollow filling material: rock wool, good heat preservation effect
4. The sealing material of the door is: high temperature resistant silicone strip
5. lnstall movable brake casters,which can be fixedin position and pushed arbitrarily
6. The box structure is conjoined type, and the operation surface panel and vacuum pump are installed unde themaorem lpsum
Specification:
| NO | Item | Item |
| 1 | Inner box material | 500(W)x500(D)x500(H)mm |
| 2 | External size | 700 (width) x650 (depth)x 1270 (height) mm subject to the actual product |
| 3 | Visual window | the door has a 19mm tempered glass window, specification W300*H350mm |
| 4 | Inner material | 304 stainless steel industrial plate thickness is 4.0mm,internal strengthening treatment vacuum without deformation |
| 5 | Vacuum pump configuration | equipped with YC0020 vacuum pump, motor power 220V/0.9KW |
| 6 | External material | cold-rolled steel plate, thickness 1.2 mm,powder paint treatment |
| 7 | Vacuum pressure holdingleakage rate | about 0.8KPa per hour |
| 8 | Pressure reliefrate | 15KPa/min+3.0KPa |
| 9 | Controlaccuracy | +0.5kPa(< 5kPa),1KPa(5KPa~ 40KPa),2KPa(40KPa~ 80KPa) |
| 10 | Minimum air pressure | 5.0KPa |
| 11 | Low pressure range | 5.0KPa to1013KPa |
Details:
