Dual Side 18650 Battery Spot Welding Machine Automatic 5000A

Brand Name : XWELL

Model Number : MD-ADW

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : USD 6000 - 9000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100pcs per month

Delivery Time : 10-15 days

Packaging Details : Wooden box

Core Components : Engine

Key Selling Points : Automatic

Welding current : 5000A 8000A

Voltage : 220V/380V(AC)

Power : 4000 W

Contact Now

Double Side 18650 Battery Spot Welding Machine Battery Automatic Spot Welding Machine

Description:

MD-ADW is mainly used for welding the battery and the nickel strip in the cylindrical battery pack, and the welding tension between the battery and the nickel is ≥30N, suitable for spot welding lithium battery of the electric motorcycle,electric car, solar street lighting and electric tools. This equipment adopts high precision closed-loop motor, high precision guide rail, equipped with DC inverter welding power source, welding head with photoelectric system to real-time check nickel strip position, adjustable welding pressure, which ensure the battery welding strength, tidy uniform welds. Movement control cards embedded system + human-machine interface, easy operation, multi-function system with variety of programming model, can store Max 999 groups for editing different battery pack data. Fast switching,high automation, good stability.

Product Specification:

1. The welding voltage locking technology prevents the network voltage fluctuation from affecting the welding current;
2. Adjustable welding pulse width, small welding spatter, welds color no changing.
3. Two sections current monitoring and comparing function, abnormal current sound and light alarm, effectively preventing the rosin joint.
4. Fault self-diagnosis function, display the corresponding fault points,convenient maintenance.
5. Motion control card embedded programming module, automatically generate the welding pole movement track and save it in the system file through inputing the space and group number after confirming the relevant position. Super simple and easy to learn programming


Battery Spot Welding Machine Specification

Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply double-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

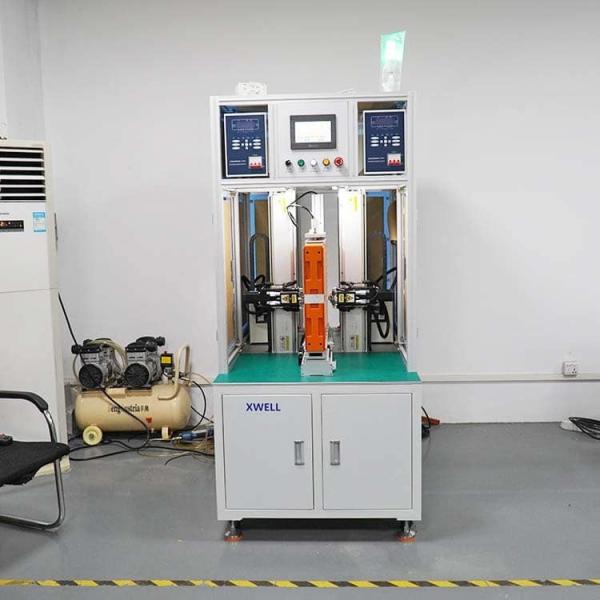

Double Side Spot Welding Machine Details

Dual Side 18650 Battery Spot Welding Machine Automatic 5000A
