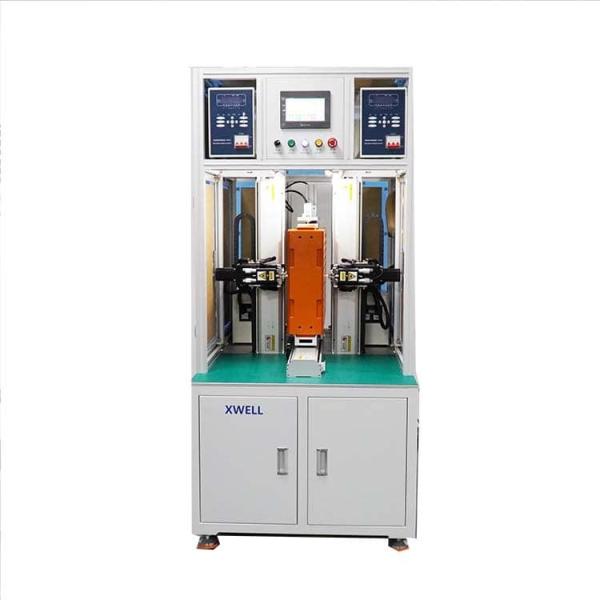

380V Auto Spot Welder 14500 21700 26670 32700 Lithium Battery Spot Welding Machine

Name: 380V Auto Spot Welder 14500 21700 26670 32700 Lithium Battery Spot Welding Machine
Brand: XWELL
Price: 6000 USD

Brand Name : XWELL

Model Number : MD-ADW

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 6000 - 9000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100pcs per month

Delivery Time : 10-15 days

Packaging Details : Wooden box

Warranty : 1 Year

Usage : Battery pack welding

Applicable Industries : Manufacturing Plant, Energy & Mining

Pack size : X direction: 26; Y direction: 26

Welding current : 5000A 8000A

Voltage : 220V/380V(AC)

Power : 4000 W

Contact Now

18650 21700 Cylindrical Cell Pack Double Side Automatic Battery Pack Spot Welding Machine

Description:High precision double-sided automatic spot welding machine is a specialized equipment in the electrical industry for welding large scale 18650 or 26650 battery packs with nickel plates, tweezers, and other positive and negative electrode connecting pieces. It is used for spot welding processes of battery combinations such as electric vehicles, mobile power supplies, and power tools. Adopting high-precision servo robotic arms to achieve high-speed spot welding, precise positioning, higher spot welding quality, saving operators, and greatly reducing labor costs. Manual loading is all that is required, and automatic spot welding can be carried out with simple settings. According to the actual situation, one person can manage multiple machines simultaneously.

Features:
5.Electromagnet device , battery pack detector, cylinder compression device , and service control system , etc , are installed to ensure battery pack is placed in right position and increase the welding accuracy.
6.A speedy 90-degree rotatable chuck is installed to move the battery pack with inconsisten direction welding spot The operating handles , CAD maps , multiple array calculations , portable driver insert port , partial area control , switchable screen Z-axis forward & backward movement , break-point virtual Swelding , battery pack detection & go features make the machine more user-friendly
7.Complete function , fit for mass welding production .
8.The pressing shaft is driven by a motor and a screw rod , which makes the replacement of products more convenient and the operation more user-friendly.

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	double-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Double Side Spot Welding Machine Details

380V Auto Spot Welder 14500 21700 26670 32700 Lithium Battery Spot Welding Machine
