5 Channel Automatic Battery Sorting Machine For 18650 21700 Cylindrical Cell

Brand Name : XWELL

Model Number : MD-BS11

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 3000 - 7900 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Marketing Type : Battery machine

Product name : Sorting Machine

Suitable for : 18650 battery

Related industry : Li Ion Battery

Voltage Supply : single-phase ~220V±10%/50Hz±10%, power <800W

Receiving channel : 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.

Test parameters : AC internal resistance, DC voltage

Sorting speed : 80ppm

AI.Set function : Intelligent one-button setting, specially designed for new functions of battery pack.

Contact Now

5 Channel Automatic Battery Sorting Machine For 18650 21700 Cylindrical Cell


Product Description

  • The 5 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester.It sets the different grade in the touch screen, and shifting different grades of batteries to
    different channels according to the judgment result.
    This automatic sorting machine is composed of loading mechanism, testing mechanism, automatic sorting and receiving mechanism,etc.

Application

Electric vehicle battery pack

Street lamp battery pack

Automotive Resistance Module

Battery pack of balancing car

Portable source

Laptop battery pack

Product Features

Product name Auto sorting machine
Model No. MD-BS11
Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650(other sizes available)
Receiving channel 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy :±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 80ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L960mm*W540mm*H1350mm
Weight <150Kg

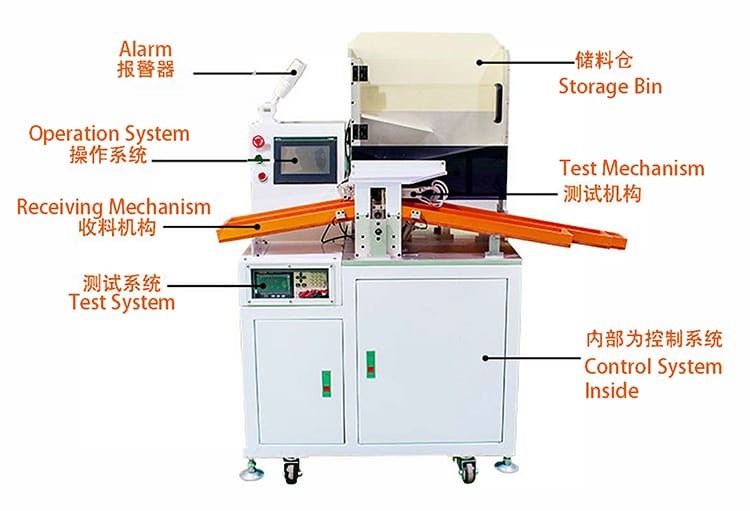

Sorting machine structure

5 Channel Automatic Battery Sorting Machine For 18650 21700 Cylindrical Cell
