Lab Automatic 11 Channels Battery Sorter For Cylindrical Cell Battery Pack Assembly

Name: Lab Automatic 11 Channels Battery Sorter For Cylindrical Cell Battery Pack Assembly
Brand: XWELL
Price: 5000 USD

Brand Name : XWELL

Model Number : XW-BS11

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 5000 - 6000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : wooden

Applicable Industries : Battery

Machinery Test Report : Provided

Core Components : Pump

Warranty : 1 Year

Efficiency : 3500-4000pcs/h

Power : <1000W

Test Parameter : AC internal resistance, DC voltage

Internal Resistance Test : Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm

Voltage Test : Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV

Contact Now

Lab Automatic 11 Channels Battery Sorter Sorting Machine For Cylindrical Cell Battery Pack Assembly

Structure of Sorter
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.

Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	11 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

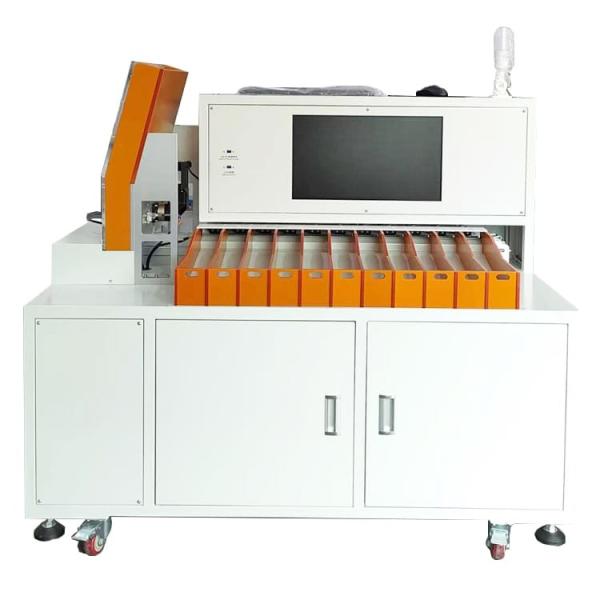

Cell Sorting Machine Details

Lab Automatic 11 Channels Battery Sorter For Cylindrical Cell Battery Pack Assembly
