24 Series Li Ion Lithium Battery Pack BMS Testing Machine For Protecting Board

Name: 24 Series Li Ion Lithium Battery Pack BMS Testing Machine For Protecting Board
Brand: XWELL
Price: 4000 USD

Brand Name : XWELL

Model Number : PBTS24-120

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 4000 - 6500 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Voltage : 220VAC

Maximum Power : 1000W

estable type : LiFePO4, LiCoO3

Reference voltage : Ternary lithium(3.8V), Lithium iron phosphate(3.0V)

Over discharge protection : 0-5V ±5mv

Over discharge protection released : 0-5V ±5mv

Machine Size : 420*430*220mm

Contact Now

24 Series Li Ion Lithium Battery Pack BMS Tester Testing Machine for Protecting Board

As a high-tech company integrating R&D, producing and sales of lithium battery PACK machines, Hualianneng Technology Co., Ltd provides smart manufacturing solution for lithium battery production over ten years. Our experienced engineers effectively ensure the advanced and practical products. Adhering to the spirit of independent innovation, Hualianneng has developed 5 series: the lithium battery automatic spot welding machine, battery sorting machine, battery PACK automatic production machine, battery testing machine and the auxiliary parts in the process of lithium battery packing. Long-term development is the forever direction of "Hualian Energy".The success of Hualuneng is based on the trust and support of our partners and customers. Hualian Talents will uphold the spirit of "integrity, pragmatism, diligence and innovation", and fully devote themselves to repay your trust and support! We are constantly developing better and more new products to provide better products and better services for more lithium battery manufacturers.

Product Application
electric vehicle battery pack, street lamp battery pack, automobile battery module, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, notebook battery pack and power tool battery pack.

Specification

Parameter	Test Range	Accuracy
Number of Testing Series	1-6 series optional
Voltage Reference	Ternary Battery:3.8V Lithium Battery: 3V
Overcharge/Overdischarge Protection Voltage	0.5-5V	±5mV
Overcharge/Overdischarge Voltage	0.5-5V	±5mV
Overcharge Protection Current	0-50A	±0.1A
Over-discharge Protection Current	0-120A	±0.1A
Equilibrium Open Voltage	0.5-5V	±5mV
Equilibrium Real-time Current	0-200mA	±1mA
Overcurrent Protection Delay	0-15S	±1mS
Overcharge/Overdischarge Protection Delay	0-20S	±1mS
Single-section Self-consuming Power	0-500uA	±1uA
Internal Loop Resistance	0-500mΩ	±1mΩ
Short Circuit Protection (more than 6 series)	0-9999us	±1us
Supply Voltage	220VAC
Maximum Power	600W
Current Level	60-120A
Machine Size	420430220mm

Detail

24 Series Li Ion Lithium Battery Pack BMS Testing Machine For Protecting Board

Product Tags:

Li Ion Pack BMS Testing Machine

BMS Testing Machine For Protecting Board

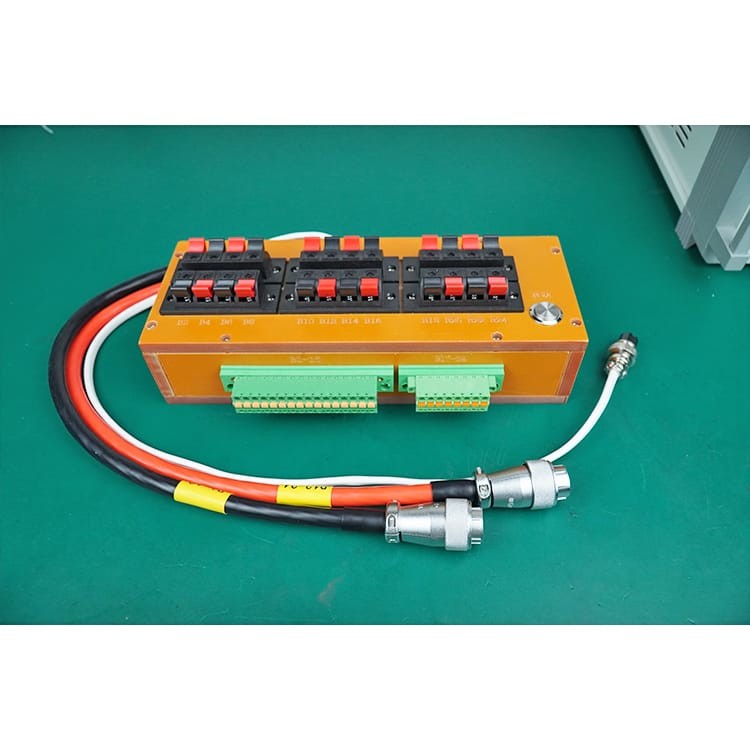

24 Series Li Ion Lithium Battery Pack BMS Testing Machine For Protecting Board Images
