18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine

Product Categories
Guangdong XWELL New Energy Technology CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine

Brand Name : XWELL

Model Number : MD-BS11

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 3000 - 7900 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Operation Voltage : AC220V ± 10% 50Hz

Rated Power : <100W

Application Battery : 18650

Sorting Channel : 2 Channels

Sorting Parameter : AC Internal Resistance & DC Voltage

Productivity : 2000 PCS/H

Internal Resistance Test Tolerance : 0.1 mΩ

Voltage Test Tolerance : 0.001 V

Feeding : Hopper feeding, 500 PCS per time

Pneumatic Pressure : 0.3-0.5 Mpa

Actuate Ratio : 99%

Net Weight : 25 Kg

Contact Now

11 Channel Automatic Battery Sorter For 18650 Cylinder Battery


Product Description


MD-BS11 cylindrical battery sorter is the test sorting device for parameters such as internal resistance and voltage of cylindrical battery. According to the battery internal resistance and voltage value, the device can accurately sort the battery to the corresponding channel, and the system can perform the GO Channel and NG Channel sorting. This model with its compact structure design is the smallest size and most cost-effective sorter in the market.

Product Features


1. Display Screen: LED digital display screen, real-time display the voltage and internal resistance value.
2. Testing Mechanism: Adopt special probe 4-line measure method, u-shape slot positioning, high efficient sorting without distinguishing between positive and negative pole.
3. Feeding System: Hopper feeding, high speed and stable feeding, avoid crashing and scratching on the battery, suitable for feeding the whole box battery manually.
4. One-click operation, simple structure and easy maintenance.
5. Small size, light weight and small space occupation.
6. Power less than 100W, energy saving.

Product Specification

Item
Battery Sorting Machine
Model
MD-BS11
Operation Voltage
AC220V ± 10% 50Hz
Rated Power
<100W
Application Battery
18650
Sorting Channel
2 Channels
Sorting Parameter
AC Internal Resistance & DC Voltage
Productivity
2000 PCS/H
Internal Resistance Test Tolerance
0.1 mΩ
Voltage Test Tolerance
0.001 V
Feeding
Hopper feeding, 500 PCS per time
Pneumatic Pressure
0.3-0.5 Mpa
Actuate Ratio
99%
Net Weight
25 Kg
Dimension
400(L)×395(W)×650(H) mm

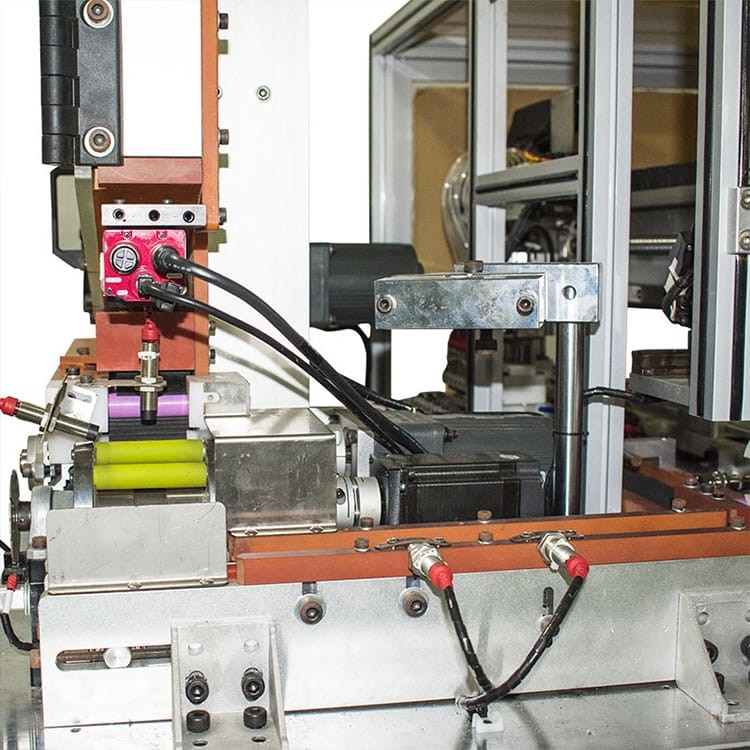

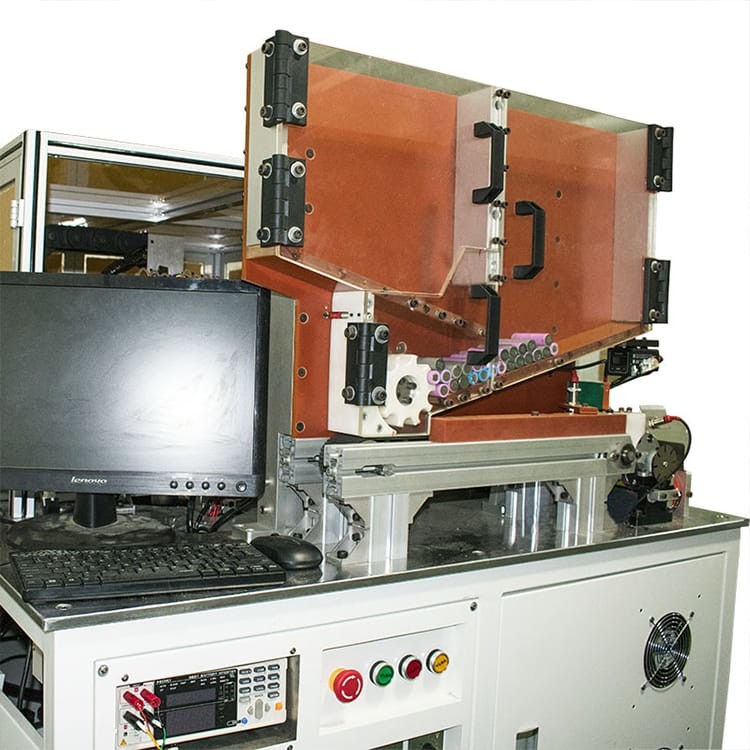

Sorting machine details

18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine

18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine

18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine
